API Plan 75, 76

Leakage Detection Unit (LDU)

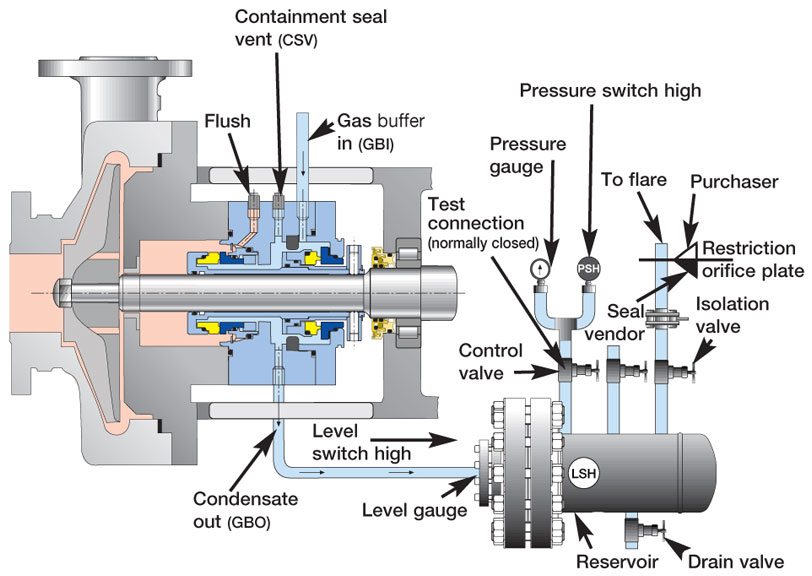

In API Plan 75 & 76 arrangements, vapour leakage from the inboard seal of a dual containment seal, either contacting or non-contacting design, is directed to a vapour recovery system via a vent connection.

AESSEAL has designed an LDU vessel to capture this vapour. The vessel can have a level switch installed so that an alarm can be sounded when the vessel is almost full (switch can be provided for a different zoned environments).

Features:

  • Robust 316SS design
  • Flanged bottom so that internal cleaning can be administered
  • Different flange options
  • Integral weld pad level gauge shows current leakage level in the vessel
