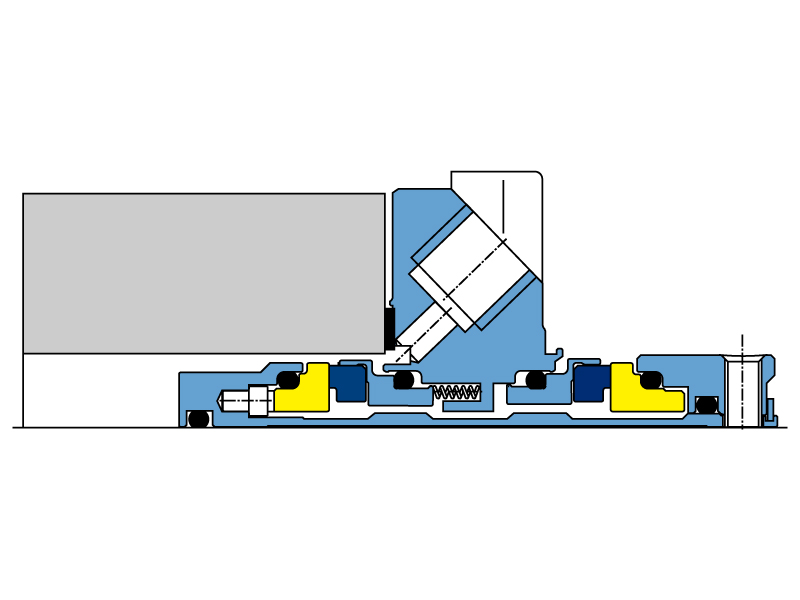

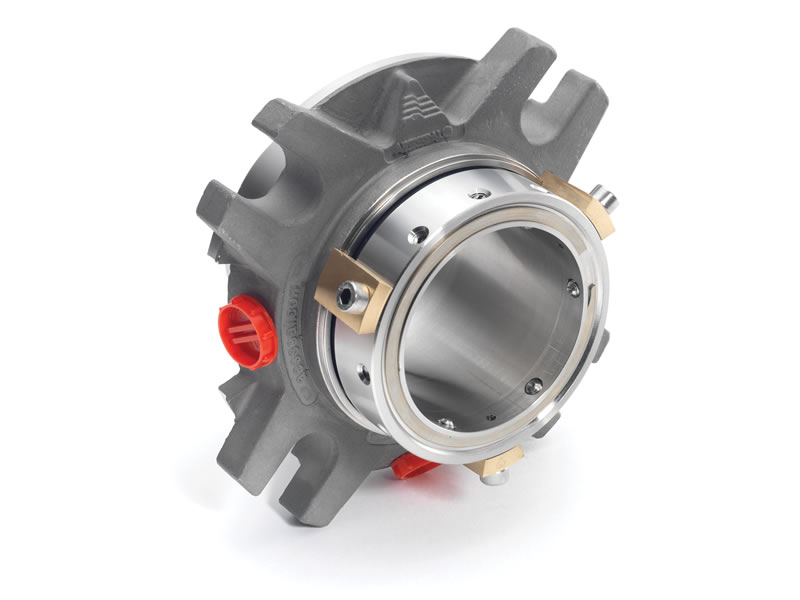

Double Stationary Seal with Pumping Scroll


The DISP™ range double stationary mechanical seals provide highly-technical, value-engineered sealing solutions applicable for all industry sectors. The seal incorporates an integral bi-directional flow inducer for effective seal cooling.


  • Efficient bi-directional pumping circulates barrier fluid for effective seal face cooling and extended seal life
  • High-integrity drive design features improve reliability and seal life
  • Thin radial faces reduce heat generation compared to alternative dual balanced designs
  • Supplied with quench, flush and drain ports
  • Sizes available from 1.000" to 3.375" (24mm - 85mm) in standard and ANSI plus gland formats
