Labtecta ST & STAX for Steam Turbines
Process steam turbines present a unique challenge for bearing protection. As the carbon rings containing the steam wear, high temperature / high velocity steam travels down the shaft directly at the bearing seal.
Standard OEM labyrinth seals have proven to be ineffective preventing steam ingress. AESSEAL® has developed LabTecta™ designs specifically designed for steam turbine applications.
- High temperature static shaft seal
- Steam deflector / Flinger
- Aflas® ‘O’ rings as standard
- Internal shut-off valve
- Extra clearances for thermal expansion

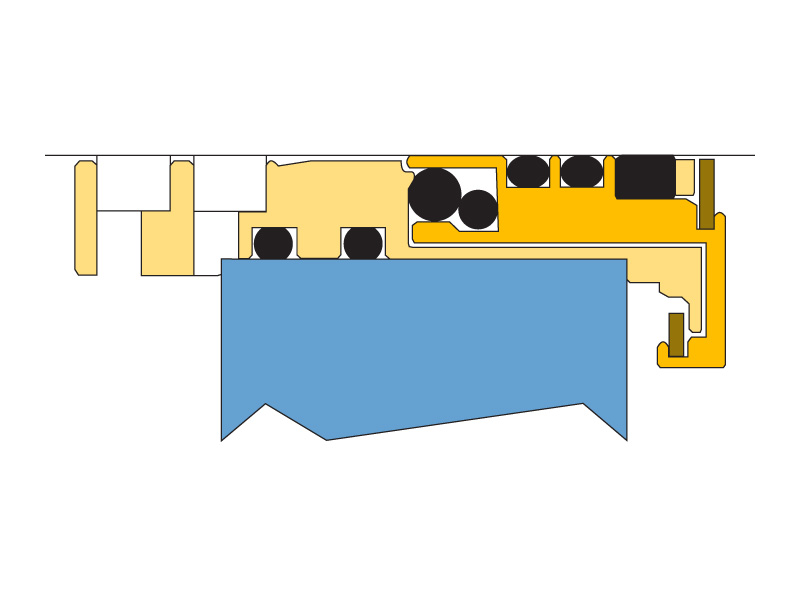

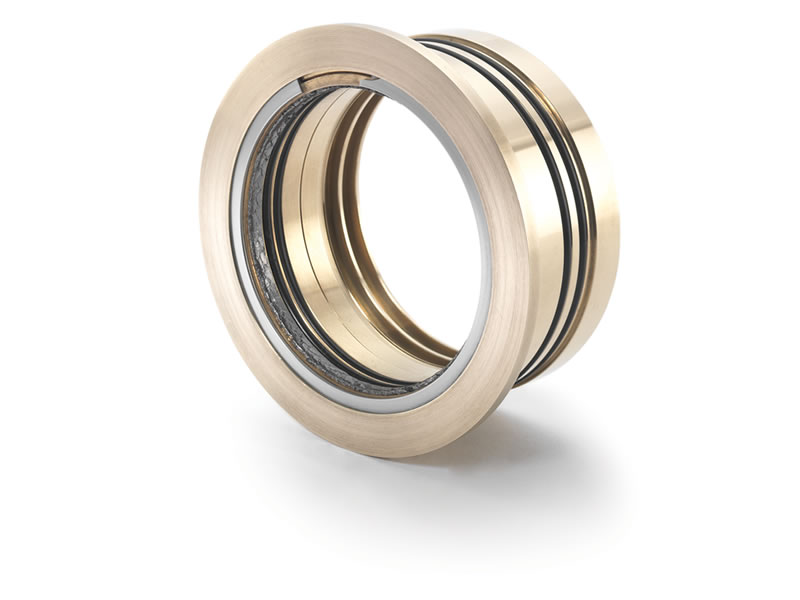

For smaller steam turbines, the LabTecta-ST™ design provides excellent protection in a compact package. For larger steam turbines, the LabTecta-STAX™ provides easy installation with the capability to accommodate large axial shaft movement.
Standard designs are available for common steam turbines models like the Elliott® YR series. Specific designs can be manufactured at no additional charge.
